HVAC: 1R0C
This notebook demonstrates how to use a simple Resistance-Capacitance (RC) thermal model to simulate indoor temperatures and HVAC loads for multiple buildings. The model solely use one resistance (R) representing the building’s thermal envelope. The capacitance (C) is not explicitly modeled, which means the indoor temperature responds instantaneously to changes in outdoor conditions and internal gains. This approach is suitable for quick estimates of heating and cooling demands but does not capture thermal inertia effects.
Imports
Import required libraries and set visualization defaults.
import os
import matplotlib.pyplot as plt
import pandas as pd
from entise.constants import Columns as Cols
from entise import Generator as TSGen
%matplotlib inline
Load Data
We load building parameters from objects.csv and simulation data from the data folder.
cwd = '.' # Current working directory: change if your kernel is not running in the same folder
objects = pd.read_csv(os.path.join(cwd, 'objects.csv'))
data = {}
common_data_folder = "../common_data"
for file in os.listdir(os.path.join(cwd, common_data_folder)):
if file.endswith(".csv"):
name = file.split(".")[0]
data[name] = pd.read_csv(os.path.join(os.path.join(cwd, common_data_folder, file)), parse_dates=True)
data_folder = 'data'
for file in os.listdir(os.path.join(cwd, data_folder)):
if file.endswith('.csv'):
name = file.split('.')[0]
data[name] = pd.read_csv(os.path.join(os.path.join(cwd, data_folder, file)), parse_dates=True)
print('Loaded data keys:', list(data.keys()))
print(objects)
Loaded data keys: ['weather', 'internal_gains', 'ventilation', 'windows']
id hvac weather resistance[K W-1] capacitance[J K-1] \
0 SFH_low 1R0C weather 0.005952 11200000
1 SFH_mid 1R0C weather 0.008929 15400000
2 SFH_high 1R0C weather 0.017857 19600000
3 DFH_low 1R0C weather 0.003788 17600000
4 DFH_mid 1R0C weather 0.005682 24200000
5 DFH_high 1R0C weather 0.011364 30800000
6 MFH_low 1R0C weather 0.001852 36000000
7 MFH_mid 1R0C weather 0.002778 49500000
8 MFH_high 1R0C weather 0.005556 63000000
ventilation[W K-1] init_temperature[C] set_temperature[C] \
0 61 20 22
1 61 20 22
2 61 20 22
3 95 20 22
4 95 20 22
5 95 20 22
6 210 20 22
7 210 20 22
8 210 20 22
min_temperature[C] max_temperature[C] area[m2] height[m] \
0 20 25 140 2.6
1 20 25 140 2.6
2 20 25 140 2.6
3 20 25 220 2.6
4 20 25 220 2.6
5 20 25 220 2.6
6 20 25 450 2.8
7 20 25 450 2.8
8 20 25 450 2.8
windows latitude[degree] longitude[degree] gains_internal[W]
0 windows_9buildings 49.72 11.06 150
1 windows_9buildings 49.72 11.06 150
2 windows_9buildings 49.72 11.06 150
3 windows_9buildings 49.72 11.06 300
4 windows_9buildings 49.72 11.06 300
5 windows_9buildings 49.72 11.06 300
6 windows_9buildings 49.72 11.06 600
7 windows_9buildings 49.72 11.06 600
8 windows_9buildings 49.72 11.06 600
Instantiate and Configure Model
Initialize the time series generator and configure it with building objects.
gen = TSGen()
gen.add_objects(objects)
Run the Simulation
Generate sequential HVAC load and indoor temperature time series for each building.
summary, df = gen.generate(data, workers=1)
100%|██████████| 9/9 [00:00<00:00, 25.82obj/s]
Results Summary
Below is a summary of the annual heating and cooling demands (in kWh/a) and peak loads (kW).
print("Summary:")
summary_kwh = (summary / 1000).round(0).astype(int)
summary_kwh.rename(columns=lambda x: x.replace("[W]", "[kW]").replace("[Wh]", "[kWh]"), inplace=True)
print(summary_kwh.to_string())
Summary:
heating:demand[kWh] heating:load_max[kW] cooling:demand[kWh] cooling:load_max[kW]
SFH_low 17723 6 1197 4
SFH_mid 13131 5 933 3
SFH_high 8543 3 672 2
DFH_low 27328 10 1927 7
DFH_mid 20116 7 1515 5
DFH_high 12914 5 1114 4
MFH_low 57279 20 4005 14
MFH_mid 42525 15 3161 11
MFH_high 27790 10 2336 8
Visualization of Results
Visualize indoor temperature, heating, and cooling loads for a selected building.
# Select building ID to visualize
building_id = summary.index[0] # Change index to visualize different buildings
building_data = df[building_id]['hvac']

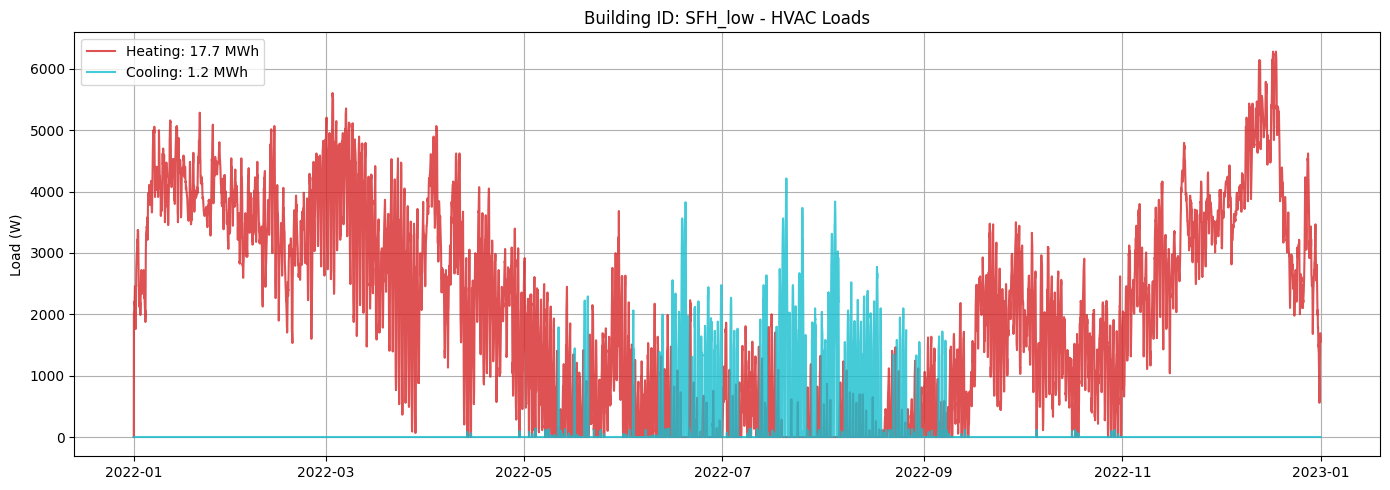

# Figure: Heating and Cooling Loads
fig, ax = plt.subplots(figsize=(14, 5))
heating_MWh = summary.loc[building_id, "heating:demand[Wh]"] / 1e6
cooling_MWh = summary.loc[building_id, "cooling:demand[Wh]"] / 1e6
(line1,) = ax.plot(
building_data.index,
building_data["heating:load[W]"],
label=f"Heating: {heating_MWh:.1f} MWh",
color="tab:red",
alpha=0.8,
)
(line2,) = ax.plot(
building_data.index,
building_data["cooling:load[W]"],
label=f"Cooling: {cooling_MWh:.1f} MWh",
color="tab:cyan",
alpha=0.8,
)
# Create the combined legend in the upper left corner
ax.set_ylabel("Load (W)")
ax.set_title(f"Building ID: {building_id} - HVAC Loads")
ax.legend()
ax.grid(True)
plt.tight_layout()
plt.show()

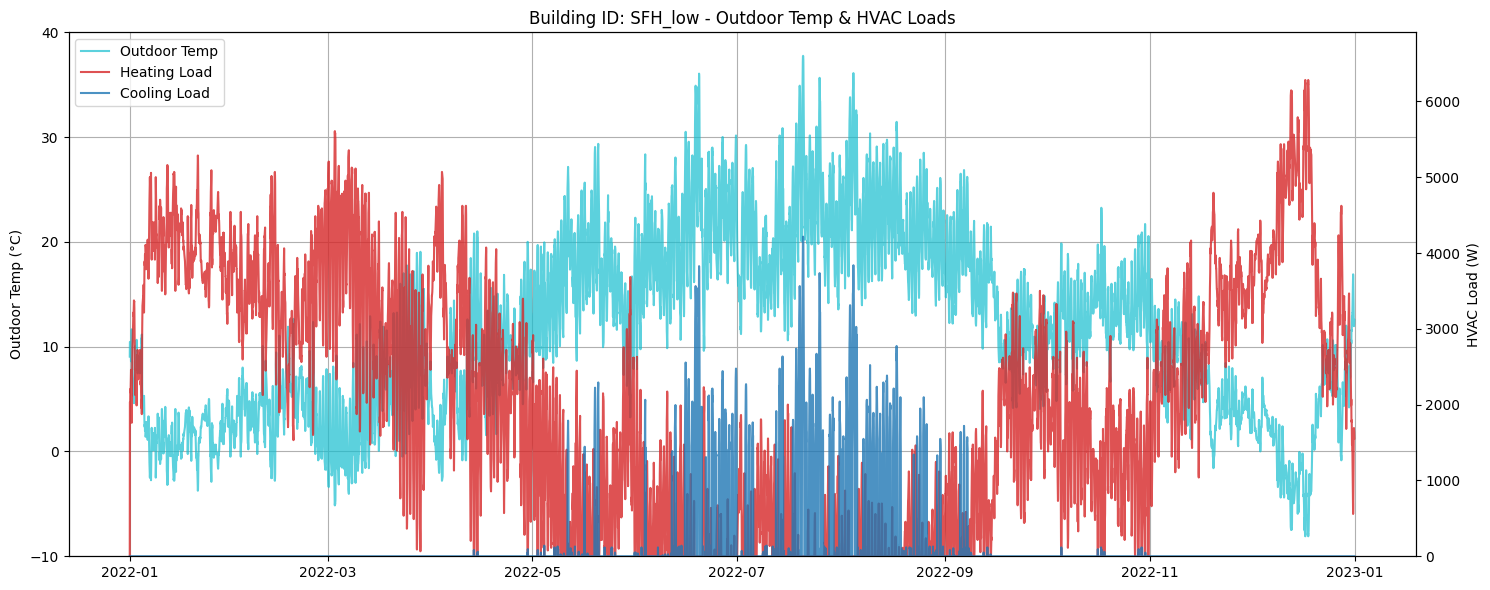

# Figure: Outdoor Temperature with Heating & Cooling Loads
fig, ax1 = plt.subplots(figsize=(15, 6))
# Plot outdoor temperature on left y-axis
air_temp = data["weather"][f"{Cols.TEMP_AIR}@2m"]
ax1.plot(building_data.index, air_temp
, label="Outdoor Temp", color="tab:cyan", alpha=0.7)
ax1.set_ylabel("Outdoor Temp (°C)")
ax1.set_ylim(air_temp.min().round() - 2, air_temp.max().round() + 2)
# Create second y-axis for loads
ax2 = ax1.twinx()
ax2.plot(building_data.index, building_data["heating:load[W]"], label="Heating Load", color="tab:red", alpha=0.8)
ax2.plot(building_data.index, building_data["cooling:load[W]"], label="Cooling Load", color="tab:blue", alpha=0.8)
ax2.set_ylabel("HVAC Load (W)")
ax2.set_ylim(
min(building_data["heating:load[W]"].min(), building_data["cooling:load[W]"].min()) * 1.1,
max(building_data["heating:load[W]"].max(), building_data["cooling:load[W]"].max()) * 1.1,
)
# Combine legends from both axes
lines1, labels1 = ax1.get_legend_handles_labels()
lines2, labels2 = ax2.get_legend_handles_labels()
ax1.legend(lines1 + lines2, labels1 + labels2, loc="upper left")
ax1.set_title(f"Building ID: {building_id} - Outdoor Temp & HVAC Loads")
ax1.grid(True)
fig.tight_layout()
plt.show()
Next Steps
You can further explore:
Adjusting building parameters in
objects.csvIncorporating or excluding additional data (e.g., internal gains, solar gains)
Investigate how different ventilation strategies impact a buildings energy demand (ventilation)
Automating analysis for larger building datasets
