DHW: Jordan-Vajen
This notebook demonstrates how to use generate drinking hot-water demand time series based on the method by Jordan et. al.
Details: Source: Jordan, U., & Vajen, K. (2005). DHWcalc: PROGRAM TO GENERATE DOMESTIC HOT WATER PROFILES WITH STATISTICAL MEANS FOR USER DEFINED CONDITIONS. Universität Marburg. URL: https://www.researchgate.net/publication/237651871_DHWcalc_PROGRAM_TO_GENERATE_DOMESTIC_HOT_WATER_PROFILES_WITH_STATISTICAL_MEANS_FOR_USER_DEFINED_CONDITIONS
Imports
Import required libraries and set visualization defaults.
import os
import warnings
import matplotlib.dates as mdates
import matplotlib.pyplot as plt
import pandas as pd
from entise.constants import Objects as O
from entise.constants import Types
from entise.core.generator import Generator as TSGen
warnings.filterwarnings('ignore')
%matplotlib inline
Load Data
We load building parameters from objects.csv and simulation data from the data folder.
cwd = '.' # Current working directory: change if your kernel is not running in the same folder
objects = pd.read_csv(os.path.join(cwd, 'objects.csv'))
objects['seed'] = 42 # ensure always same result
data = {}
common_data_folder = '../common_data'
for file in os.listdir(os.path.join(cwd, common_data_folder)):
if file.endswith('.csv'):
name = file.split('.')[0]
data[name] = pd.read_csv(os.path.join(os.path.join(cwd, common_data_folder, file)), parse_dates=True)
print('Loaded data keys:', list(data.keys()))
print(objects)
Loaded data keys: ['validation_weather', 'weather']
id dhw datetimes dwelling_size[m2] temp_cold[C] temp_hot[C] \
0 1 JordanVajen weather 100 10 60
1 2 JordanVajen weather 150 10 60
2 3 JordanVajen weather 120 10 60
3 4 JordanVajen weather 80 10 60
4 5 JordanVajen weather 90 10 60
5 6 JordanVajen weather 80 10 60
6 7 JordanVajen weather 90 10 60
7 8 JordanVajen weather 110 10 60
holidays_location seed
0 PT 42
1 B,AR 42
2 NaN 42
3 TO,IT 42
4 BR 42
5 BY,DE 42
6 MX 42
7 NL 42
Instantiate and Configure Model
Initialize the time series generator and configure it with building objects.
gen = TSGen()
gen.add_objects(objects)
Run the Simulation
Generate sequential DHW time series for each building.
summary, df = gen.generate(data, workers=1)
100%|██████████| 8/8 [00:10<00:00, 1.26s/it]
Results Summary
Below is a summary of the annual volume (l), energy (Wh) and power demands (W).
print("Summary:")
print(summary)
Summary:
dhw:volume_total[l] dhw:volume_avg[l] dhw:volume_peak[l] \
1 20932 2.389 260.292
2 23915 2.730 249.391
3 21530 2.458 159.896
4 18346 2.094 148.656
5 20639 2.356 148.080
6 18346 2.094 148.236
7 20639 2.356 148.080
8 23025 2.628 182.962
dhw:energy_total[Wh] dhw:energy_avg[Wh] dhw:energy_peak[Wh] \
1 973563 111 12106
2 1112338 127 11599
3 1001388 114 7437
4 853275 97 6914
5 959963 110 6887
6 853287 97 6895
7 959965 110 6887
8 1070927 122 8510
dhw:power_avg[W] dhw:power_max[W] dhw:power_min[W]
1 111 12106 0
2 127 11599 0
3 114 7437 0
4 97 6914 0
5 110 6887 0
6 97 6895 0
7 110 6887 0
8 122 8510 0

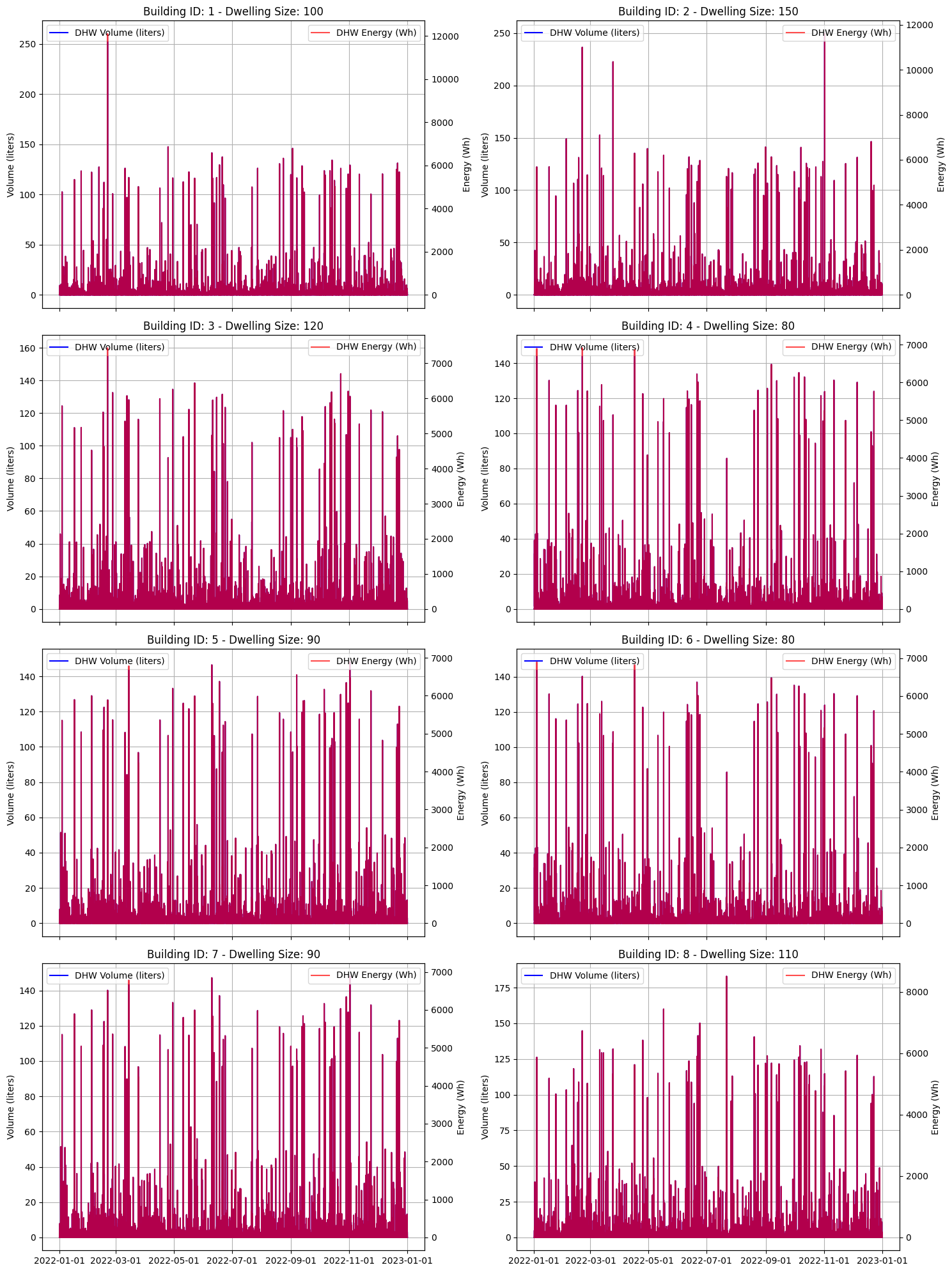

Visualization of Results
Visualization of the volume and energy demand per time step for all eight buildings.
def plot_dhw_demand(ax, obj_id, df, title):
obj_data = df[obj_id][Types.DHW]
obj_data.index = pd.to_datetime(obj_data.index)
# Plot volume
ax.plot(obj_data.index, obj_data[f"{Types.DHW}:volume[l]"], label="DHW Volume (liters)", color="blue")
ax.set_ylabel("Volume (liters)")
ax.set_title(title)
ax.legend(loc="upper left")
ax.grid(True)
# Add second y-axis for energy
ax_energy = ax.twinx()
ax_energy.plot(obj_data.index, obj_data[f"{Types.DHW}:energy[Wh]"], label="DHW Energy (Wh)", color="red", alpha=0.7)
ax_energy.set_ylabel("Energy (Wh)")
ax_energy.legend(loc="upper right")
# Format x-axis for better readability
ax.xaxis.set_major_formatter(mdates.DateFormatter("%Y-%m-%d"))
ax.xaxis.set_major_locator(mdates.DayLocator(interval=7)) # Show every 7 days
return obj_data
# Figure setup
fig, axes = plt.subplots(4, 2, figsize=(15, 20), sharex=True)
axes = axes.flatten()
# Plot each object
objects.set_index("id", inplace=True)
for i, (obj_id, object) in enumerate(objects.iterrows()):
plot_dhw_demand(axes[i], obj_id, df, f"Building ID: {obj_id} - Dwelling Size: {object[O.DWELLING_SIZE]}")
plt.gca().xaxis.set_major_locator(mdates.MonthLocator(interval=2))
plt.tight_layout()
plt.show()

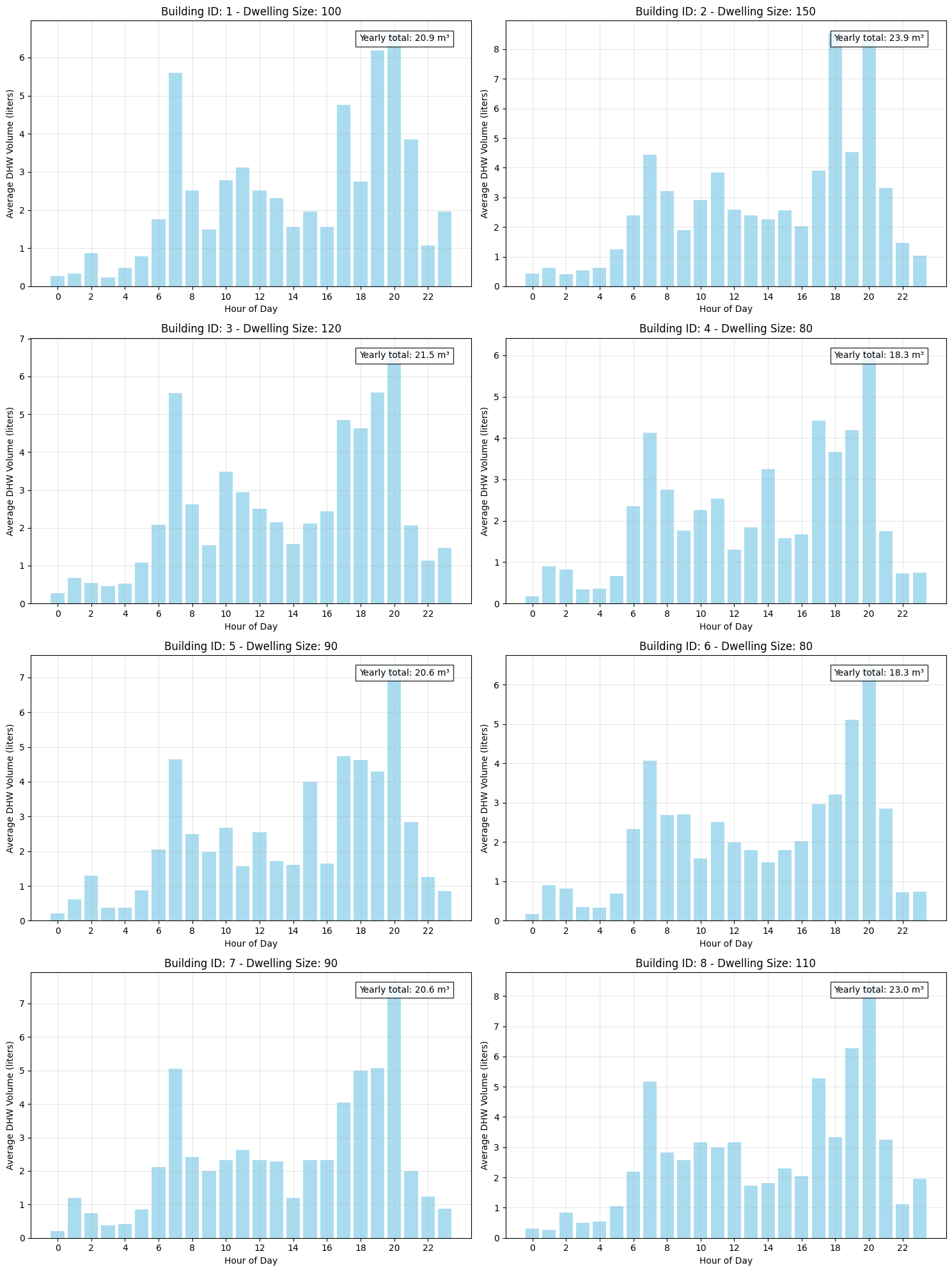

Visualization of the average daily dhw demand for each building.
def plot_daily_profile(ax, obj_data, title):
obj_data["hour"] = obj_data.index.hour
daily_profile = obj_data.groupby("hour")[f"{Types.DHW}:volume[l]"].mean()
ax.bar(daily_profile.index, daily_profile.values, color="skyblue", alpha=0.7)
ax.set_xlabel("Hour of Day")
ax.set_ylabel("Average DHW Volume (liters)")
ax.set_title(title)
ax.set_xticks(range(0, 24, 2))
ax.grid(True, alpha=0.3)
# Calculate yearly total in m3
yearly_total = obj_data[f"{Types.DHW}:volume[l]"].sum() / 1000 # Convert L to m3
ax.text(
0.95,
0.95,
f"Yearly total: {yearly_total:.1f} m³",
transform=ax.transAxes,
horizontalalignment="right",
verticalalignment="top",
bbox=dict(facecolor="white", alpha=0.8),
)
# Figure setup
fig, axes = plt.subplots(4, 2, figsize=(15, 20))
axes = axes.flatten()
# Plot daily profiles for each object
for i, (obj_id, object) in enumerate(objects.iterrows()):
plot_daily_profile(
axes[i], df[obj_id][Types.DHW], f"Building ID: {obj_id} - Dwelling Size: {object[O.DWELLING_SIZE]}"
)
plt.tight_layout()
plt.show()

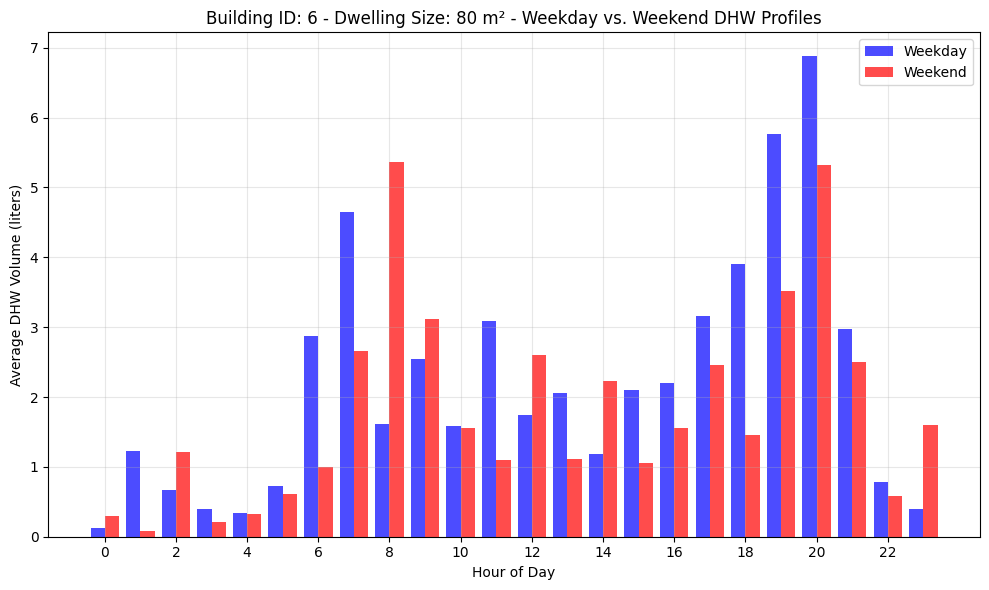

Visualization of the average daily dhw demand for building 6 split into weekday and weekend demand.
# Compare weekend vs. weekday profiles for object 6 (with weekend activity)
fig, ax = plt.subplots(figsize=(10, 6))
# Extract weekday and weekend data
obj6_data = df[6][Types.DHW]
obj6_data["day_of_week"] = obj6_data.index.dayofweek
weekday_data = obj6_data[obj6_data["day_of_week"] < 5] # Monday-Friday
weekend_data = obj6_data[obj6_data["day_of_week"] >= 5] # Saturday-Sunday
# Calculate average profiles
weekday_profile = weekday_data.groupby("hour")[f"{Types.DHW}:volume[l]"].mean()
weekend_profile = weekend_data.groupby("hour")[f"{Types.DHW}:volume[l]"].mean()
# Plot both profiles
ax.bar(weekday_profile.index - 0.2, weekday_profile.values, width=0.4, color="blue", alpha=0.7, label="Weekday")
ax.bar(weekend_profile.index + 0.2, weekend_profile.values, width=0.4, color="red", alpha=0.7, label="Weekend")
ax.set_xlabel("Hour of Day")
ax.set_ylabel("Average DHW Volume (liters)")
ax.set_title("Building ID: 6 - Dwelling Size: 80 m² - Weekday vs. Weekend DHW Profiles")
ax.set_xticks(range(0, 24, 2))
ax.grid(True, alpha=0.3)
ax.legend()
plt.tight_layout()
plt.show()
Next Steps
You can further explore:
Adjusting building parameters in
objects.csvIncorporating or excluding additional data (e.g. holidays)
Automating analysis for larger building datasets
